Grave Shoring Panels

The Lite Guard cemetery shield meets the safety requirements of AS 4744.1-2000 (Australian Standard), BSEN 1331.142 (British European Standard) and 29CFR Part 1926 OSHA Sup Part P (USA Standard).

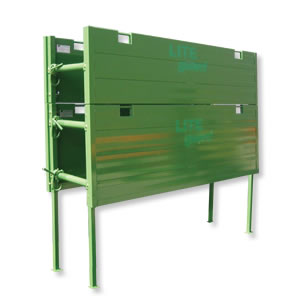

The panels are very light, approximately 30 kgs each made of structural grade aluminium. The standard panels are 2400mm long x 600mm high x 45mm thick, painted green or any colour on request. Other sizes are available.

There are lifting lugs on all panels. Panels can be stacked to a depth of 3000mm using extension joiners and can be handled by small machinery often used within cemeteries.

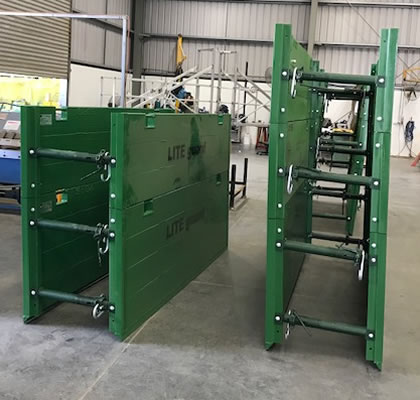

The base unit has 4 spreader bars whereas the stacking panels only require 2 spreader bars per set. The base unit has built in cutting edges but we can supply 600mm high legs for use in normal soil giving an additional working depth of 600mm below the base of the shield.

The spreader bars can be adjustable or a fixed length. The standard spreader bars are 600mm-900mm.
