Rescue Tripod

Grave Safety

Need to enter a Grave?
Then do so safely and ensure you have someone with you at all time.
You should also have a means of retrieving someone from the grave if they need assistance to get out.
Under OH&S anyone who can be engulfed by fumes or gasses while below ground or in a confined space should have the means of retrieval on site.
LITE industries are now supplying the Abtech Safety Rescue tripod, complete with combined fall arrest/winch unit and harness.
This is needed if you are doing Exhumation or Lift and deepen.

TORQ 15m Fall Arrest Device

TORQ 15m Fall Arrest DeviceTORQ 15m Fall Arrest Device is designed to provide fall protection from falls from height. Anchored above the user, it gives the user a safe area of work. The retracting line pays in and out of the device as the user moves. In the event of a fall, a brake engages, arresting the fall of the user with a controlled deceleration force.

Product Code: AB15T
Conformance: BS EN 360
Cable: 15m x 5mm Galvanised Steel
Max Recommended User Weight: 150kg
Weight: 8.75kg
Service Interval: 12 months

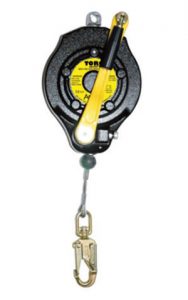

TORQ 15m Fall Arrest Recovery Device

TORQ 15m Fall Arrest Recovery DeviceTORQ 15m Fall Arrest Recovery Device is designed to provide fall protection from falls from height. Anchored above the user, it gives the user a safe area of work. The retracting line pays in and out of the device as the user moves. In the event of a fall, a brake engages, arresting the fall of the user with a controlled deceleration force. The Fall Arrest has an integral winch mechanism, so in the event of a fall, the top man will be able to raise or lower the user to a safe area. Swivel anchor eye on top. Can be mounted onto Davit arms for access and egress from a confined space.

Product Code: AB15RT
Conformance: BS EN 360, BS EN 1496
Cable: 15m x 5mm Galvanised Steel
Max Recommended User Weight: 150KG
Weight: 10.40kg
Service Interval: 12 months

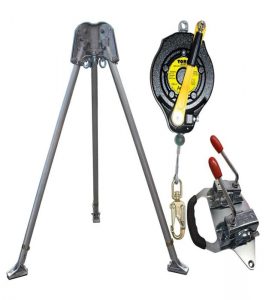

Safety CST1KIT Confined Space Tripod

This Confined Space Tripod Kit comprises of the following:-

T3 Tripod

Safety CST1KIT Confined Space TripodThe tripod is the basis of a confined space entry and rescue system giving a strong, stable and portable anchorage point for fall arrest and recovery systems. One worker can carry and erect the sturdy but lightweight aluminium alloy tripod.

For stability, the tripod legs may be individually adjusted

The T3 has 6 anchor points tested to EN795. The 3 overhead pulleys hold up to 11mm rope. The extra anchor points may be used with pulleys for a double roped rescuer, back-up system, airlines, communication lines, medical kits, tools etc.

Features:-

  • Designed for 2 persons, SWL 250Kg 6:1 safety ratio
  • 3x Overhead Pulleys
  • 3x Underslung Eyes
  • Adjustable from 140cm – 240cm
  • Leg span: 110cm – 170cm
  • Certified to EN795 Type B
  • Weight: 19.4kg

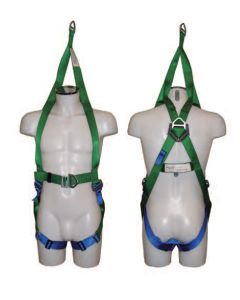

Harness

Rescue HarnessRescue Harness complete with a dorsal (rear ‘D’) attachment point.

Suitable for general work application where there is a risk falling and working in confined spaces.

Product Code: ABRES
Conformance: BS EN 361, BS EN 1497
Max Recommended User Weight: 150kg
Weight: 1.5kg
Chest Size:

  • ABRES SML – Small – 32” – 37”
  • ABRES STD – Standard – 38”- 45”
  • ABRES XL – Large – 46” – 58”

Lifespan: The maximum lifespan of the product is 10 years from the recorded first use. The type of use and the conditions will affect the lifespan of a product
